Firmware: Ktag 6.070
Software: Ksuite 2.08
Car: Ford Transit 2.2 cdi 2012g, block SID 208
Tips:

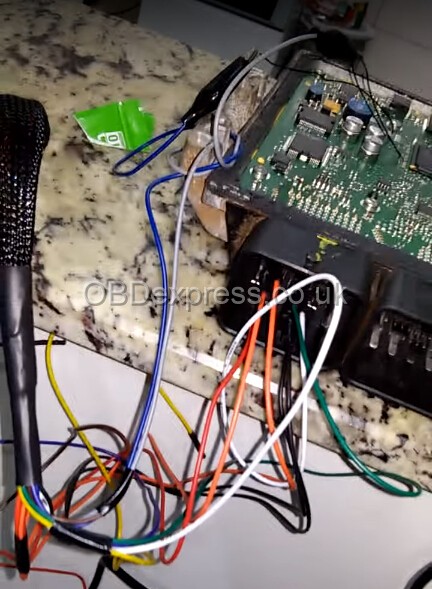

Ford Transit 2.2 cdi 2012g. block SID 208. It is necessary to remove the soot. The manual says that first you need to connect the K-Tag to the OBD connector with a cable 144300T108. Click on the ID and follow the instructions for unlocking, and then on the table you can merge and fill the firmware.
Cable 144300T108 pinout:
KTAG_DB15 —> OBDII
11 ————> 04; 05 (Ground)
07 ————> 06 (CAN_H)
14 ————> 07 (K-Line)
15 ——- —–> 14 (CAN_L)
05 ————> 16 (Battery Power)
KTAG_DB15 —> OBDII
11 ————> 04; 05 (Ground)
07 ————> 06 (CAN_H)
14 ————> 07 (K-Line)
15 ——- —–> 14 (CAN_L)
05 ————> 16 (Battery Power)

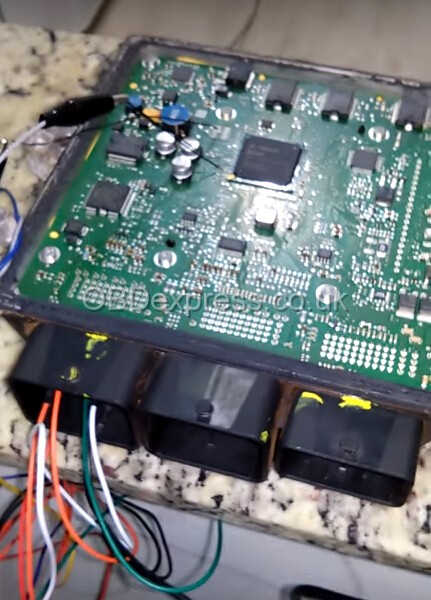

Note that It is unlocked on the table, if you do not plan to write in the outlet in the future, you can not unblock it.
Procedure: Ktag firmware 6.070 reading 2008 Ford Transit 2.2 SID 208
Done!
